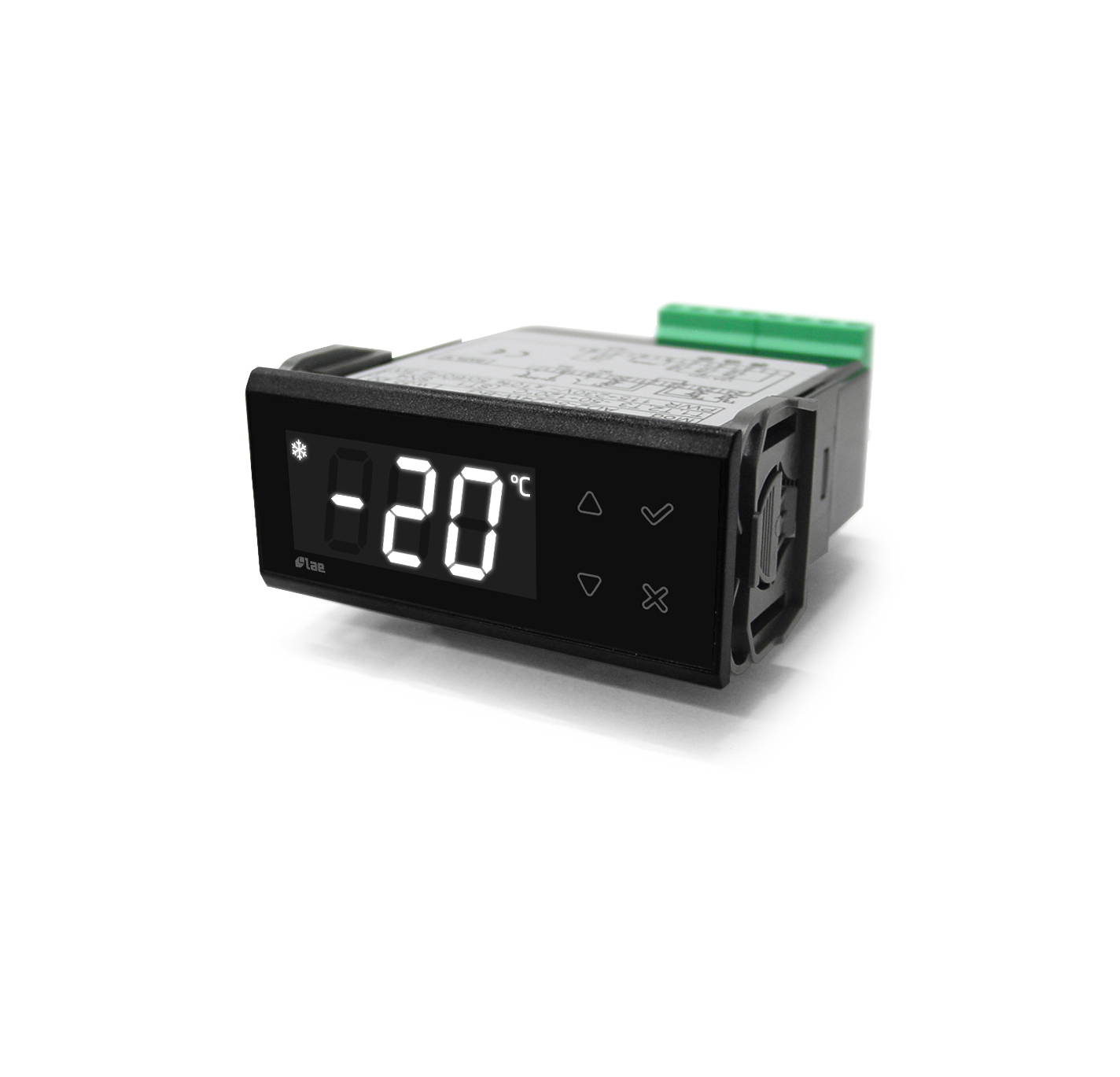

Indestructible, Totally Adaptable, Incredibly User-Friendly Controller

Data sheet


Main features

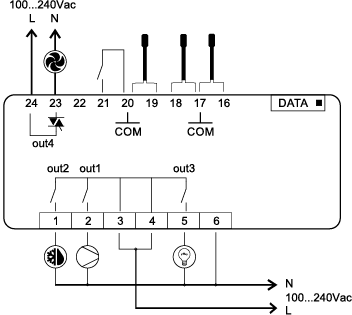

  • Up to four powerful outputs, all configurable for a perfect adaptation to the specific requirements, such as: direct control of a highly rated compressor, LED light control, ECM ON/OFF fan control, regulation of heaters for heating/catering equipment, control of switched loads, defrost, alarms.
  • Suitable for R290 natural refrigerant gas.
  • Immediate configuration of the specific control mode (HT, LT, heating etc.).
  • Excellent measurement accuracy ±0.1°C.
  • Universal power supply.
  • TTL or RS485 serial port; IoT connectivity option via an external LAE Gateway.
  • Selectable ASCII/RTU communication protocol.
  • Several display colour options: blue, white, red.


Fridges and freezers, cold stores, control panels, food warmers, bain-maries.

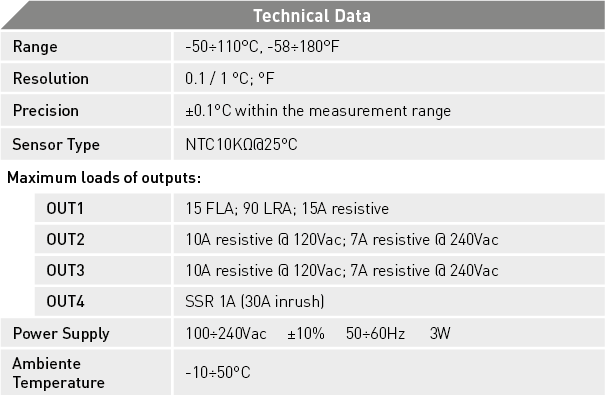

Technical data
