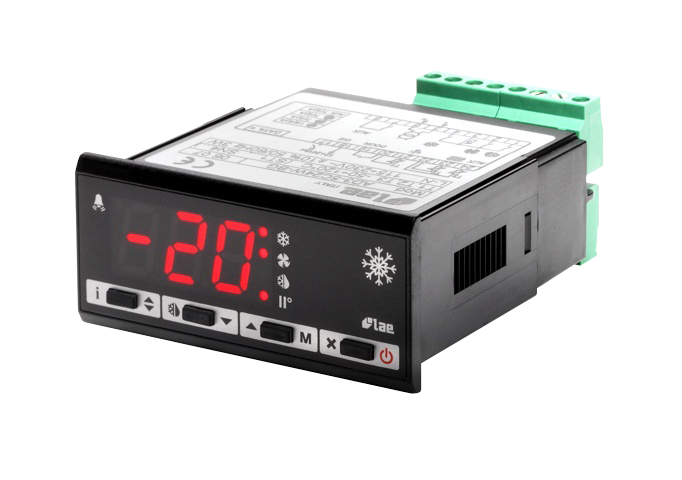

BR5
BR5
Compact Comprehensive Refrigeration Controller
Data sheet
Download
Main features
- Up to 5 configurable outputs for a perfect adaptation to the specific needs such as: control of variable speed compressors (example 2) or fans (example 1), drive of a large external compressor relay (example 3), control of lights, ON/OFF fans, heaters, switched loads, defrost, alarms, second evaporator
- With or without RTC for timed control functions
- Suitable for R290 compressors
- Universal mains power supply
- Connectivity to residential supervisory systems or Cloud
- Several display colour options: amber, blue, green, red or white
Applications
Upright refrigerators, plug-in and supermarket display cases, refrigerated vehicles, cold stores, control panels.

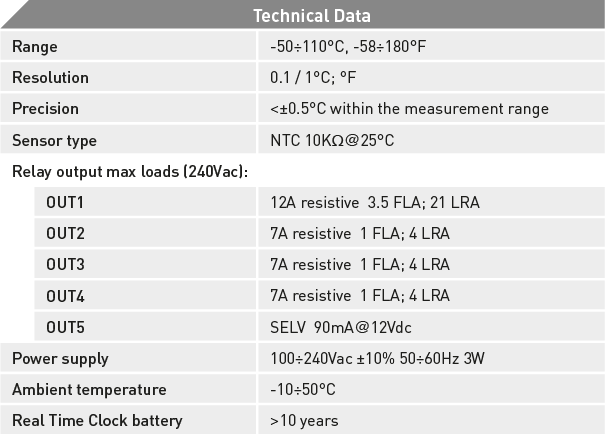

Technical data

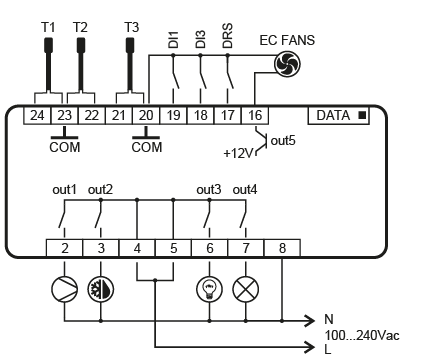

Example 1

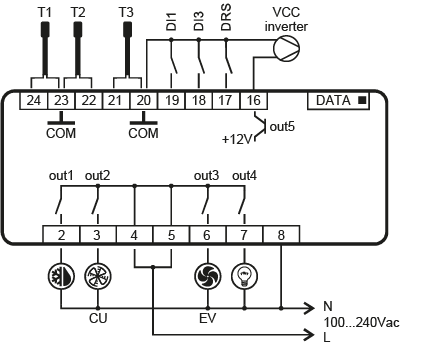

Example 2

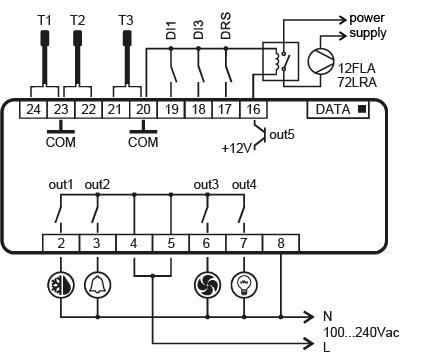

Example 3
