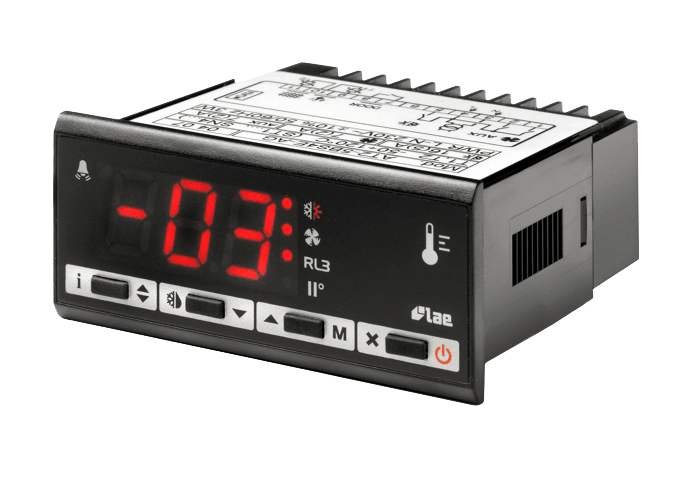

AT2-5

Refrigeration Controller for HT/LT

Data sheet

Download

Main features

  • Selectable Refrigerating or Heating control
  • Runs on mains power supply
  • Direct compressor control through high power 16(5)A
  • Auxiliary output configurable in six different operating modes
  • Selectable NTC10K or PTC input
  • Electrical, off cycle or hot gas defrost
  • Temperature, door open alarms
  • Optional light control button
  • Connectivity to LAE supervisory systems
  • UL approved

Applications

High or Low Temperature upright cabinets and counters, cold stores, plug-in display cases, control panels, heated cabinets.

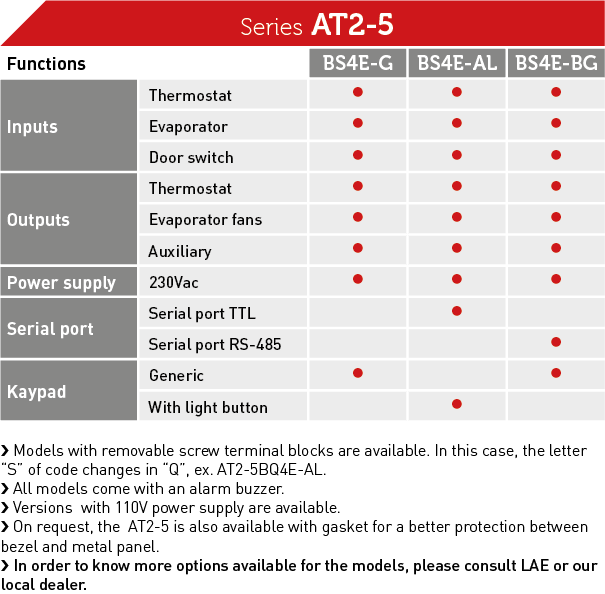

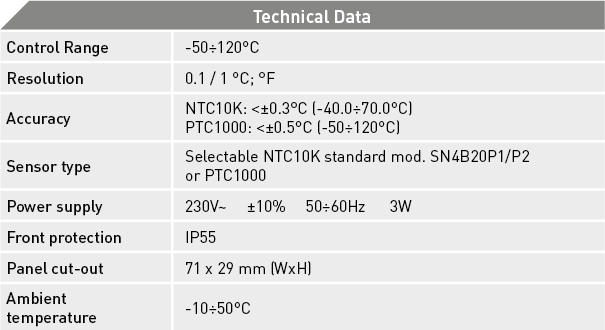

Technical data

AT2-5BS4E-G
