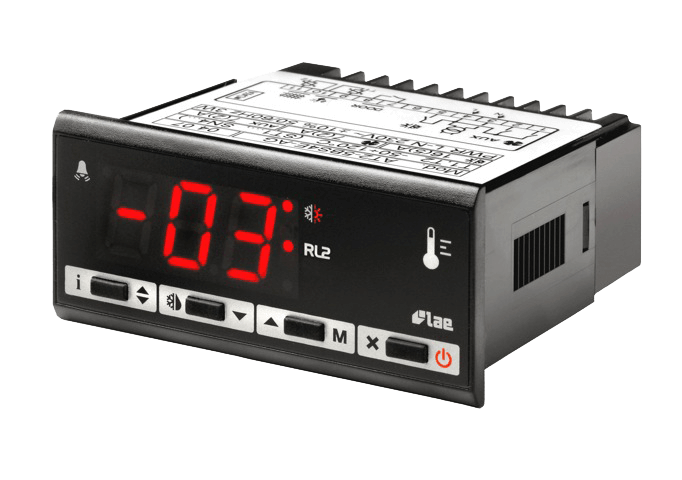

AT1-5
AT1-5
Refrigeration Controller for HT applications
Data sheet
Download
Main features
- Selectable Refrigerating or Heating control
- Integrated defrost functions
- Runs on mains power supply
- Direct compressor control through high power 16(4)A or 16(8)A relay
- Selectable NTC10K or PTC probe input
- Auxiliary output configurable in four different operation modes
- Temperature, door open alarms
- Optional light control button
- Connectivity to LAE supervisory systems
- UL approved
Applications
Freestanding upright cabinets and counters, cold stores, plug-in display cases, control panels, heated cabinets.

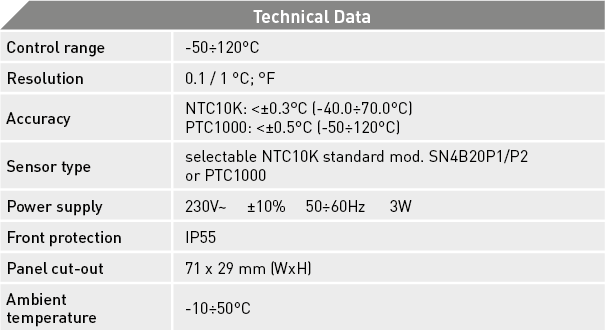

Technical data
AT1-5AS6E-BG
