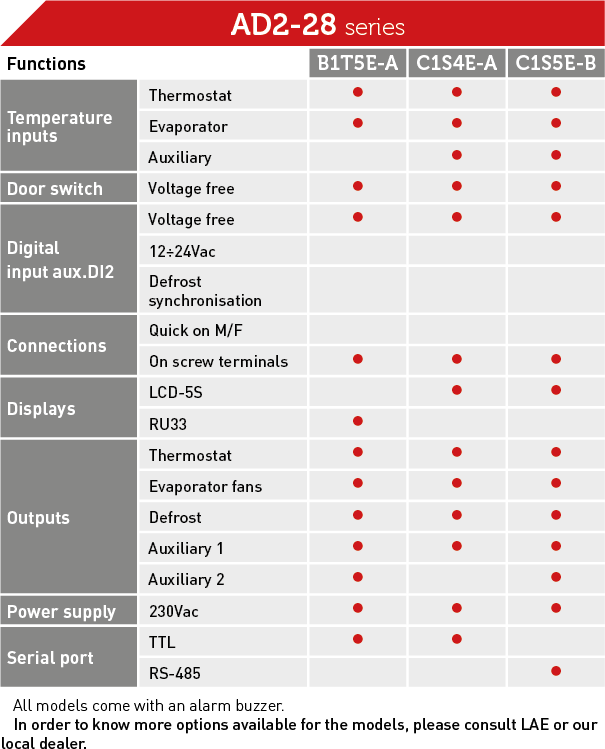

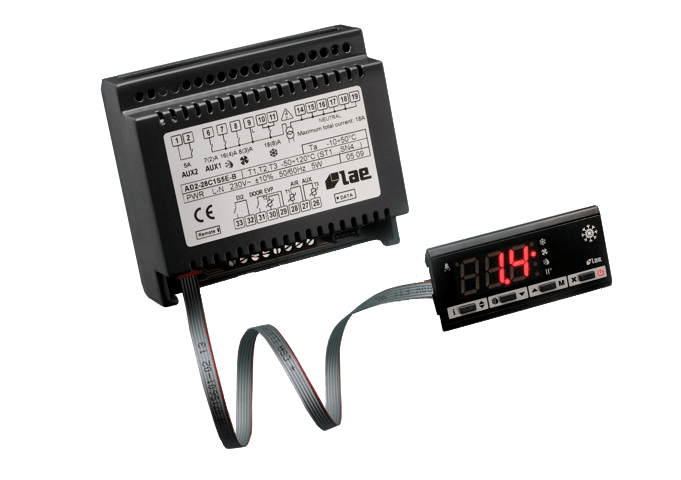

AD2-28
AD2-28
Versatile Split Refrigeration Controller
Data sheet
Download
Main features
- Cyclic defrosts
- Synchronized defrost start and termination with master-slave connection
- Selectable NTC10K or PTC input
- FLEXICOLD function for energy saving or alternative setpoint
- Optional control of a second compressor or evaporator
- Excellent evaporator fan control
- Absolute or relative temperature alarms, door open alarm, condenser high temperature/pressure alarm
- Light and standby control (On/Off)
- Connection to LAE supervisory systems
- Available display unit: LCD-5S or RU33
Applications
Upright refrigerators, plug-in and supermarket display cases, cold stores, control panels.

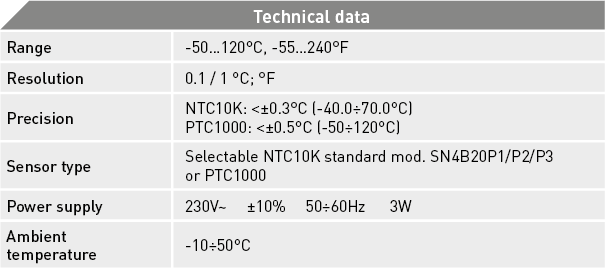

Technical data
AD2-28C1S5E-B

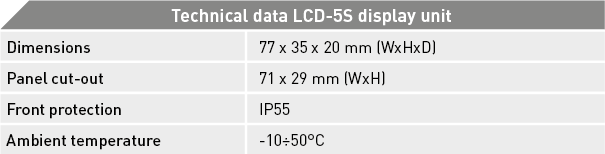

LCD-5S

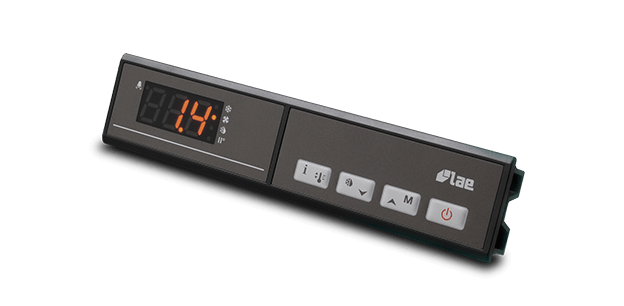

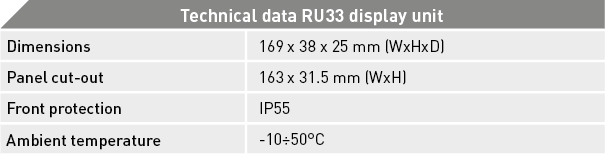

RU33
