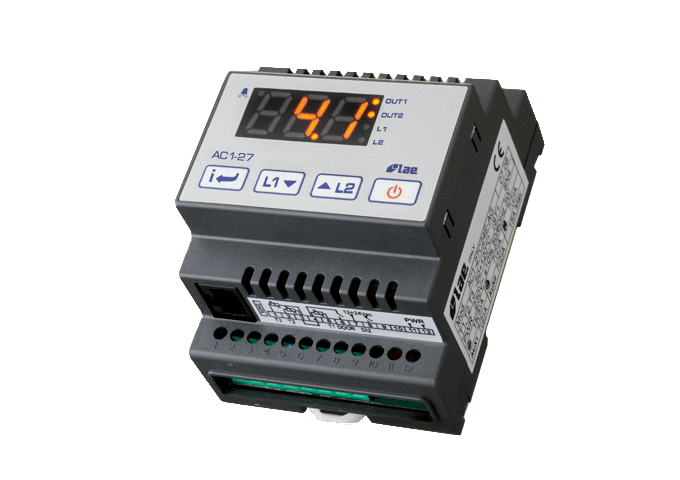

AC1-27

Two channel universal Controller, ON/OFF or PID

Data sheet

Download

Main features

  • Runs on mains power supply
  • PID with autotuning or ON/OFF control
  • Main output on 12A relay or for SSR-piloting and auxiliary output on 5A relay
  • Input for 0÷1V,  PTC/NTC10K, TC J/K  or Pt100
  • 0.1 / 1°C or 1°F resolution
  • Selectable Refrigerating/Heating (Dehumidifying/Humidifying) control
  • Absolute or relative temperature alarms
  • ON/OFF button on front
  • Connectivity to LAE TAB supervisory systems

Applications

Temperature: on control panels for small cold stores, heating systems, heated cupboards, bains-marie, ovens, laboratory equipment. Humidity: on control panels for greenhouses, seasoning cells, cold rooms, air-conditioned rooms.

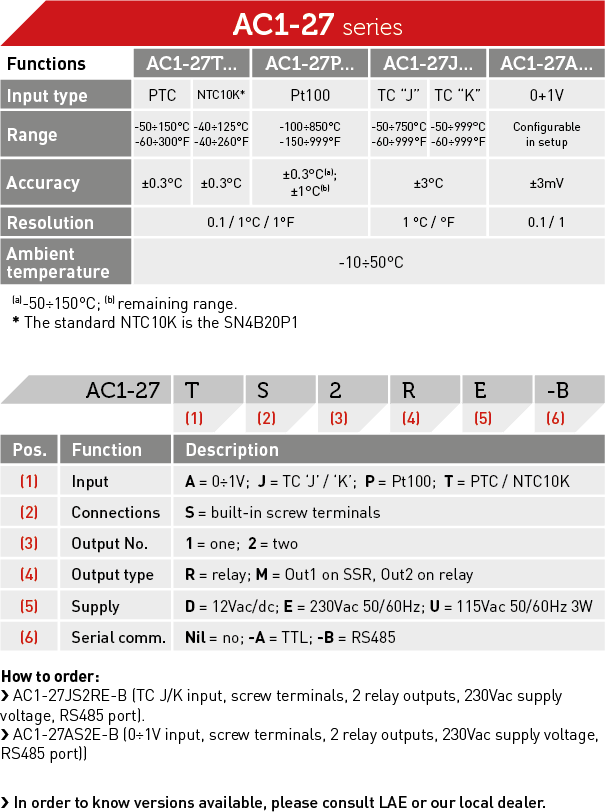

Technical data

AC1-27AS2RE-B
AC1-27TS2RE-B
