B-Series Electronic Controllers

All-in-one controllers for high-efficiency professional refrigeration systems.

HIGH-EFFICIENCY CONTROLLERS FOR PROFESSIONAL REFRIGERATION

The B-Series covers compact all-in-one (BR5), DIN-rail (BR1-27) and split-mount power-unit (BD1-28, BR1-28) refrigeration controllers, with dedicated outputs for Variable Capacity Compressors (VCC) or EC variable-speed fans and enhanced ECO energy-saving management.

Key Features

  • Fully configurable relay outputs
  • Dedicated output for Variable Capacity Compressors (VCC), EC variable-speed fans or external relay (model dependent)
  • Enhanced ECO Energy Saving and defrost management
  • Real-Time Clock available (standard or optional, model dependent)
  • Wide choice of remote displays (split-mount versions)
  • Extended mains power supply
  • TTL or RS485 serial port with selectable ASCII/RTU protocol
  • Suitable for flammable refrigerants (A2L/A3) thanks to sealed relays (model depending)

Product range

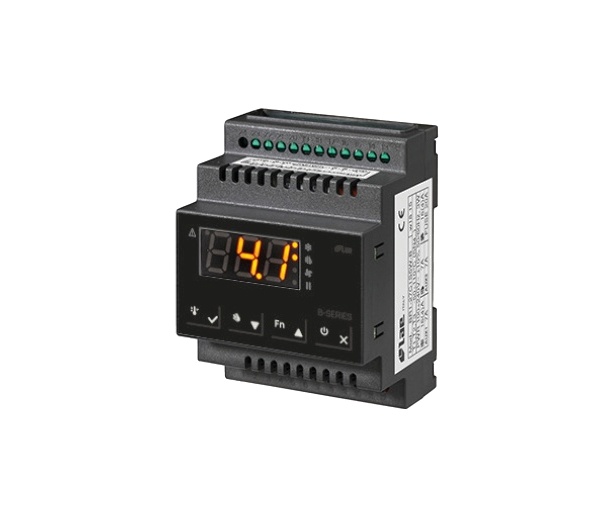

BR5 Technical Data
BR5 Technical Data
Inputs Sensor type NTC 10KΩ@25°C
Range -50÷110°C, -58÷180°F
Resolution 0.1° / 1° (°C; °F)
Precision <±0.5°C within the measurement range
Outputs OUT1 Compressor 12A resistive, 3.5 FLA; 21 LRA @240Vac
OUT2 Auxiliary / fan 7A resistive, 1 FLA; 4 LRA @240Vac
OUT3 Auxiliary / defrost 7A resistive, 1 FLA; 4 LRA @240Vac
OUT4 Auxiliary / alarm 7A resistive, 1 FLA; 4 LRA @240Vac
OUT5 ECM Fan output or VCC output SELV 90mA @12Vdc
Technical specifications Power supply 100÷240Vac ±10% 50÷60Hz 3W
Front protection IP54 (with gasket)
Buzzer Yes
Real Time Clock battery >10 years
Dimensions 77 x 35 x 90 mm
Panel-cutout 71 x 29 mm (WxH)
Environment conditions Operating temperature & humidity -10… +50°C; 15%… 80% rH
Conformity Marks CE
Use with flammable refrigerants A2L/A3 gases thanks to sealed relays (model depending)
BR1-27 Technical Data
BR1-27 Technical Data
Inputs Sensor type NTC10KΩ@25°C
Range -50÷ +110°C, -58÷ +180°F
Resolution 0.1° / 1° (°C; °F)
Precision <±0.5°C within the measurement range
Outputs OUT1 Compressor 16A resistive, 3.6 FLA, 21.6 LRA @240Vac
OUT2 Evap. Fan 16A resistive, 3.6 FLA, 21.6 LRA @240Vac
OUT3 Defrost 7A resistive, 1 FLA, 4 LRA @240Vac
OUT4 Auxiliary loads 1 7A resistive, 1 FLA, 4 LRA @240Vac
OUT5 Auxiliary loads 2 7A resistive, 1 FLA, 4 LRA @240Vac
Technical specifications Power supply 100÷240Vac ±10% 50÷60Hz 3W
Buzzer Yes
Real Time Clock battery >10 years
Dimensions 71 x 97 x 61 mm – DIN rail
Environment conditions Operating temperature & humidity -10… +50°C; 15%… 80% rH
Conformity Marks CE
Use with flammable refrigerants No

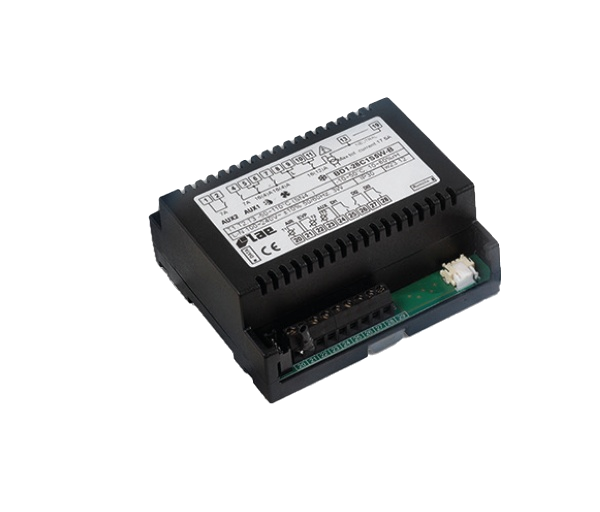

BD1-28 & BR1-28 Technical Data
BD1-28 & BR1-28 Technical Data
Inputs Sensor type NTC10KΩ@25°C
Range -50÷ +110°C, -58÷ +180°F
Resolution 0.1° / 1° (°C; °F)
Precision <±0.5°C within the measurement range
Outputs BD1-28..S & BR1-28..S BD1-28..Q & BR1-28..Q
OUT1 Compressor 16A resistive, 12 FLA, 72 LRA @240Vac 12A resistive, 12 FLA, 72 LRA @240Vac
OUT2 Auxiliary / fan 16A resistive, 3.6 FLA, 21.6 LRA @240Vac 12A resistive, 3.6 FLA, 21.6 LRA @240Vac
OUT3 Auxiliary / defrost 16A resistive, 3.6 FLA, 21.6 LRA @240Vac 12A resistive, 3.6 FLA, 21.6 LRA @240Vac
OUT4 Auxiliary loads 1 7A resistive @240Vac 7A resistive @240Vac
OUT5 Auxiliary loads 2 7A resistive @240Vac 7A resistive @240Vac
Technical specifications Power supply 100÷240Vac ±10% 50÷60Hz 3W
Buzzer Yes
Real Time Clock battery BD1-28: No
BR1-28: >10 years
Dimensions 107 x 95 x 47 mm – DIN rail
Environment conditions Operating temperature & humidity -10… +50°C; 15%… 80% rH
Conformity Marks CE, UL
Use with flammable refrigerants A2L/A3 gases thanks to sealed relays

Documentation

Access datasheets, manuals, software and technical resources of CD5.
